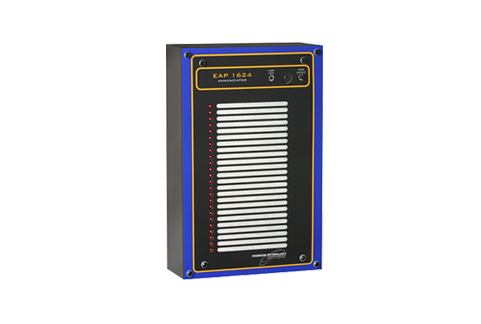

The EAP 1624 annunciator is designed to provide visual and audible alarm indications.

Each alarm point is individually controlled by a separate remote contact. Energizing any of the alarm points will cause the audible alarm to sound (alarm points 1 to 4 are individually selectable to defeat the audible alarm if desired). The automatic ringback feature allows the audible alarm to sound for a subsequent fault even if it has already been silenced for a previous fault. The legend card which identifi es the LED indicators is easily replaceable, and greatly simplifies field modifications. A test pushbutton is provided to allow the operator to verify operation of all LEDs. It also activates the audible alarm, and allows confirmation of operation of the silence function.

คุณสมบัติ

 Compatible with :  MEC 20
 No. of Lights :  24
 LED Color :  Red, Green or Yellow
 Power Supply :  12 or 24VDC
 Dimensions :  7″W x 11″H x 2″D
 Mounting :  Flush



Standard features of the EAP 1624 include:

  • Flush mount annunciator
  • 12 or 24 alarm circuits
  • “Automatic Ringback” feature
  • Solid-state visual (LED) and audible indicators
  • Audible alarm silence pushbutton
  • Test pushbutton
  • Internal isolation allows multiple annunciators on one system
  • Quality Assurance Standard ISO 9001
